CU13108
Automotive Radiator
Back
Kit
Right Side

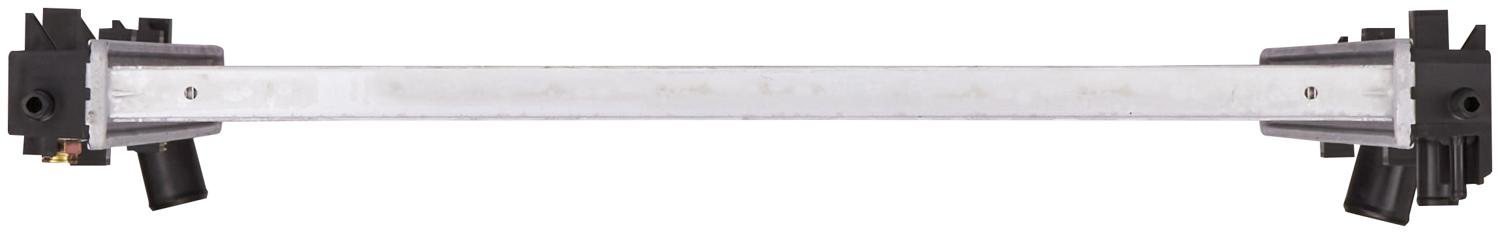

Top
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7* Part finish and color may vary
Part Specifications
- Core Height
- 23.625 in
- Core Material
- Aluminum
- Core Row Quantity
- 1
- Core Thickness
- 0.625 in
- Core Width
- 20.1875 in
- Down Flow Or Cross Flow Type
- Cross Flow
- Engine Oil Cooler Included
- No
- Frame Included
- No
- Inlet Diameter
- 1.3125 in
- Inlet Header Length
- 21.5 in
- Inlet Header Width
- 2 in
- Inlet Location
- Bottom Left
- Internal Engine Oil Cooler
- No
- Internal Transmission Oil Cooler
- Yes
- Mounting Type
- Post
- Outlet Diameter
- 1.375 in
- Outlet Header Length
- 21.5 in
- Outlet Header Width
- 2 in
- Outlet Location
- Top Right
- Tank Material
- Plastic
- Transmission Oil Cooler Distance between Fittings
- 14.75 in
- Transmission Oil Cooler Fitting Type
- Quick Connect
- Transmission Oil Cooler Included
- Yes
- Transmission Oil Cooler Plate Quantity
- 6
- Transmission Oil Cooler Type
- Plated
- Pop. Code
- D
Related Documents
Applications
Filters
Cadillac CTS 3.0L V6 3.0L
| Year | Fuel | Fuel Del. | ASP. | Eng. VIN | Eng. Desg. | CC | CID | |
|---|---|---|---|---|---|---|---|---|
| 2012 | GAS | FI | N | 5 | LFW | - | 182 |
Cadillac CTS 3.6L V6 3.6L
| Year | Fuel | Fuel Del. | ASP. | Eng. VIN | Eng. Desg. | CC | CID | |
|---|---|---|---|---|---|---|---|---|
| 2012 | GAS | FI | N | 3 | LFX | 3564 | 217 |
Cadillac CTS Base V6 3.0L
| Year | Fuel | Fuel Del. | ASP. | Eng. VIN | Eng. Desg. | CC | CID | |
|---|---|---|---|---|---|---|---|---|
| 2013 | GAS | FI | N | 5 | LFW | - | 182 | |
| 2012 | GAS | FI | N | 5 | LFW | - | 182 | |
| 2011 | GAS | FI | N | Y | LF1 | - | 182 | |
| 2010 | GAS | FI | N | G | LF1 | - | 182 |
Cadillac CTS Base V6 3.6L
Cadillac CTS Coupe V6 3.6L
| Year | Fuel | Fuel Del. | ASP. | Eng. VIN | Eng. Desg. | CC | CID | |
|---|---|---|---|---|---|---|---|---|
| 2012 | GAS | FI | N | 3 | LFX | 3564 | 217 | |
| 2011 | GAS | FI | N | D | LLT | 3564 | 217 |
Cadillac CTS Luxury V6 3.0L
| Year | Fuel | Fuel Del. | ASP. | Eng. VIN | Eng. Desg. | CC | CID | |
|---|---|---|---|---|---|---|---|---|
| 2014 | GAS | FI | N | 5 | LFW | - | 182 | |
| 2013 | GAS | FI | N | 5 | LFW | - | 182 | |
| 2012 | GAS | FI | N | 5 | LFW | - | 182 | |
| 2011 | GAS | FI | N | Y | LF1 | - | 182 | |
| 2010 | GAS | FI | N | G | LF1 | - | 182 |
Cadillac CTS Luxury V6 3.6L
| Year | Fuel | Fuel Del. | ASP. | Eng. VIN | Eng. Desg. | CC | CID | |
|---|---|---|---|---|---|---|---|---|
| 2010 | GAS | FI | N | 7 | LY7 | 3564 | 217 | |
| 2010 | GAS | FI | N | V | LLT | 3564 | 217 | |
| 2009 | GAS | FI | N | 7 | LY7 | 3564 | 217 |
