CU13103

Automotive Radiator

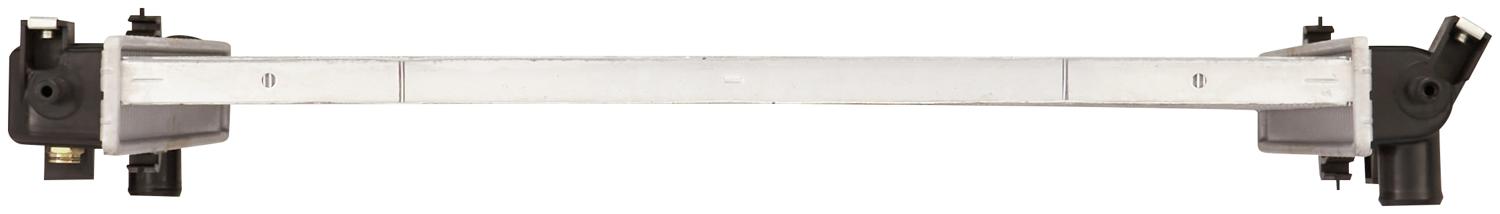

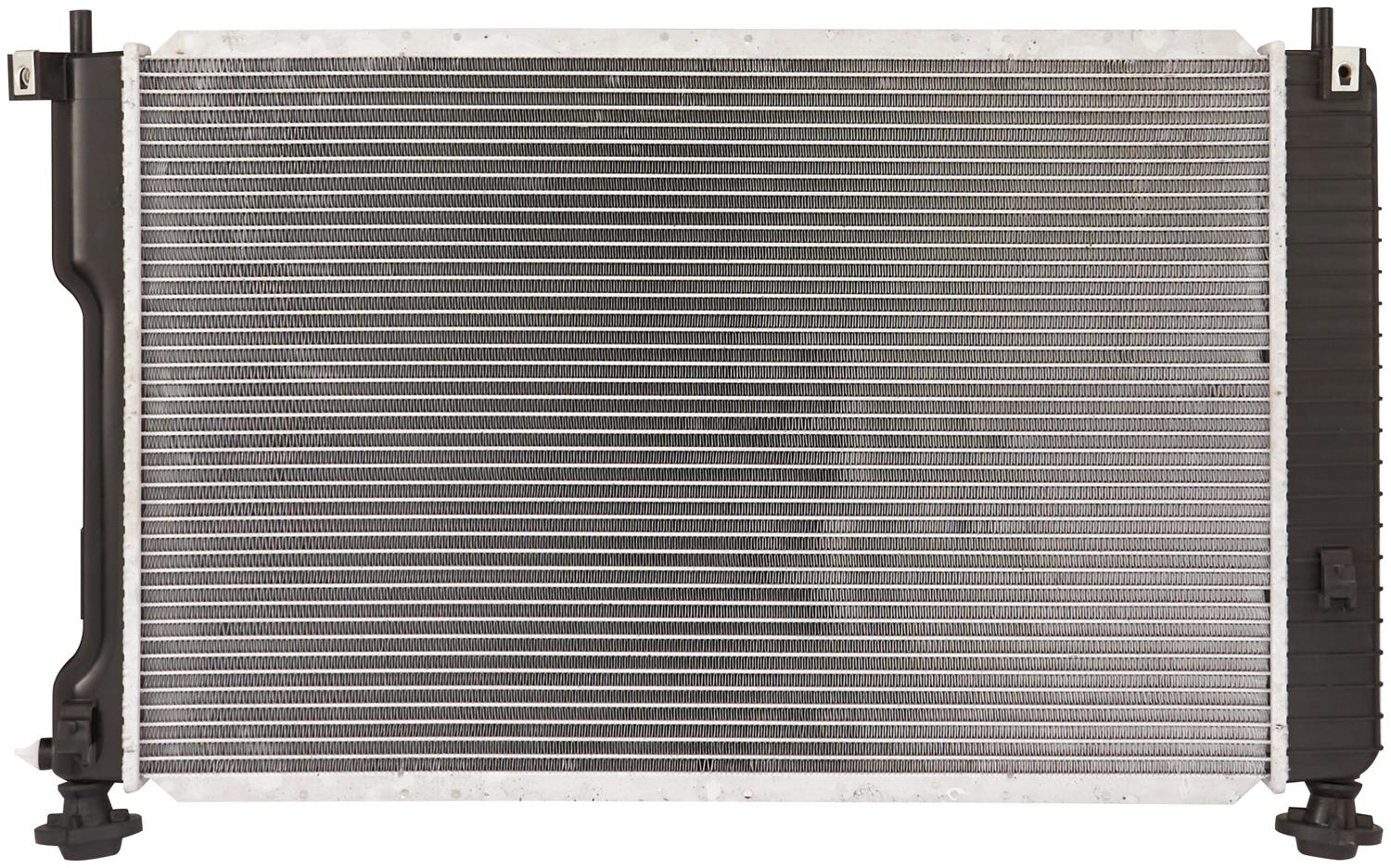

Front Back Top Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

* Part finish and color may vary

placeWhere to buy call1 888 910-8888

Part Specifications

Core Height
26 in
Core Material
Aluminum
Core Row Quantity
1
Core Thickness
1 in
Core Width
16.5625 in
Down Flow Or Cross Flow Type
Cross Flow
Engine Oil Cooler Included
No
Frame Included
No
Inlet Diameter
1.3125 in
Inlet Header Length
17.25 in
Inlet Header Width
2.5625 in
Inlet Location
Bottom Left
Internal Engine Oil Cooler
No
Internal Transmission Oil Cooler
Yes
Mounting Type
Post
Outlet Diameter
1.3125 in
Outlet Header Length
17.25 in
Outlet Header Width
2.5625 in
Outlet Location
Top Right
Tank Material
Plastic
Transmission Oil Cooler Distance between Fittings
12 in
Transmission Oil Cooler Fitting Type
Quick Connect
Transmission Oil Cooler Included
Yes
Transmission Oil Cooler Plate Quantity
6
Transmission Oil Cooler Type
Plated
Pop. Code
A

Related Documents

Technical Bulletin
Warranty Warning: Degrading Coolant
Installation Instructions
General Radiator Installation Guide
Warranty
radiator
Technical Bulletin
Improved Design Notice

Applications

Filters

Chevrolet Equinox L L4 2.4L

Year Fuel Fuel Del. ASP. Eng. VIN Eng. Desg. CC CID
2017 FLEX FI N K LEA 2384 145
2017 GAS FI N K LEA 2384 145
2016 FLEX FI N K LEA 2384 145
2016 GAS FI N K LEA 2384 145
2015 FLEX FI N K LEA 2384 145
2015 GAS FI N K LEA 2384 145

Chevrolet Equinox LS L4 2.4L

Year Fuel Fuel Del. ASP. Eng. VIN Eng. Desg. CC CID
2017 FLEX FI N K LEA 2384 145
2017 GAS FI N K LEA 2384 145
2016 FLEX FI N K LEA 2384 145
2016 GAS FI N K LEA 2384 145
2015 FLEX FI N K LEA 2384 145
2015 GAS FI N K LEA 2384 145
2014 FLEX FI N K LEA 2384 145
2014 GAS FI N K LEA 2384 145
2013 FLEX FI N K LEA 2384 145
2013 GAS FI N K LEA 2384 145
2012 FLEX FI N K LEA 2384 145
2012 GAS FI N K LEA 2384 145
2011 GAS FI N C LAF 2384 145
2010 GAS FI N W LAF 2384 145

Chevrolet Equinox LT L4 2.4L

Year Fuel Fuel Del. ASP. Eng. VIN Eng. Desg. CC CID
2017 FLEX FI N K LEA 2384 145
2017 GAS FI N K LEA 2384 145
2016 FLEX FI N K LEA 2384 145

Chevrolet Equinox LT V6 3.6L

Year Fuel Fuel Del. ASP. Eng. VIN Eng. Desg. CC CID
2017 FLEX FI N 3 LFX 3564 217
2017 GAS FI N 3 LFX 3564 217
